With a 100% chromoly frame, fork, and bars, the EX is a bike that is difficult to match.
Erik Elstran’s signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business, even when your approach to riding is all about having fun – just like Erik’s.

Key Features

  • 100% Chromoly Frame, Fork, and 4-piece Bars
  • Sunday Signature Wave Down Tube
  • Sunday Seeley Signature Grips
  • FSA Conical Headset
  • Sunday Sabretooth v2 25t Sprocket
  • Sunday Saker 3-PC Cranks, 165mm
  • Odyssey Path Pro OEM 2.40″ Tires
  • Odyssey Clutch v2 Freecoaster
  • Sealed Front and Rear Hubs

Specifications

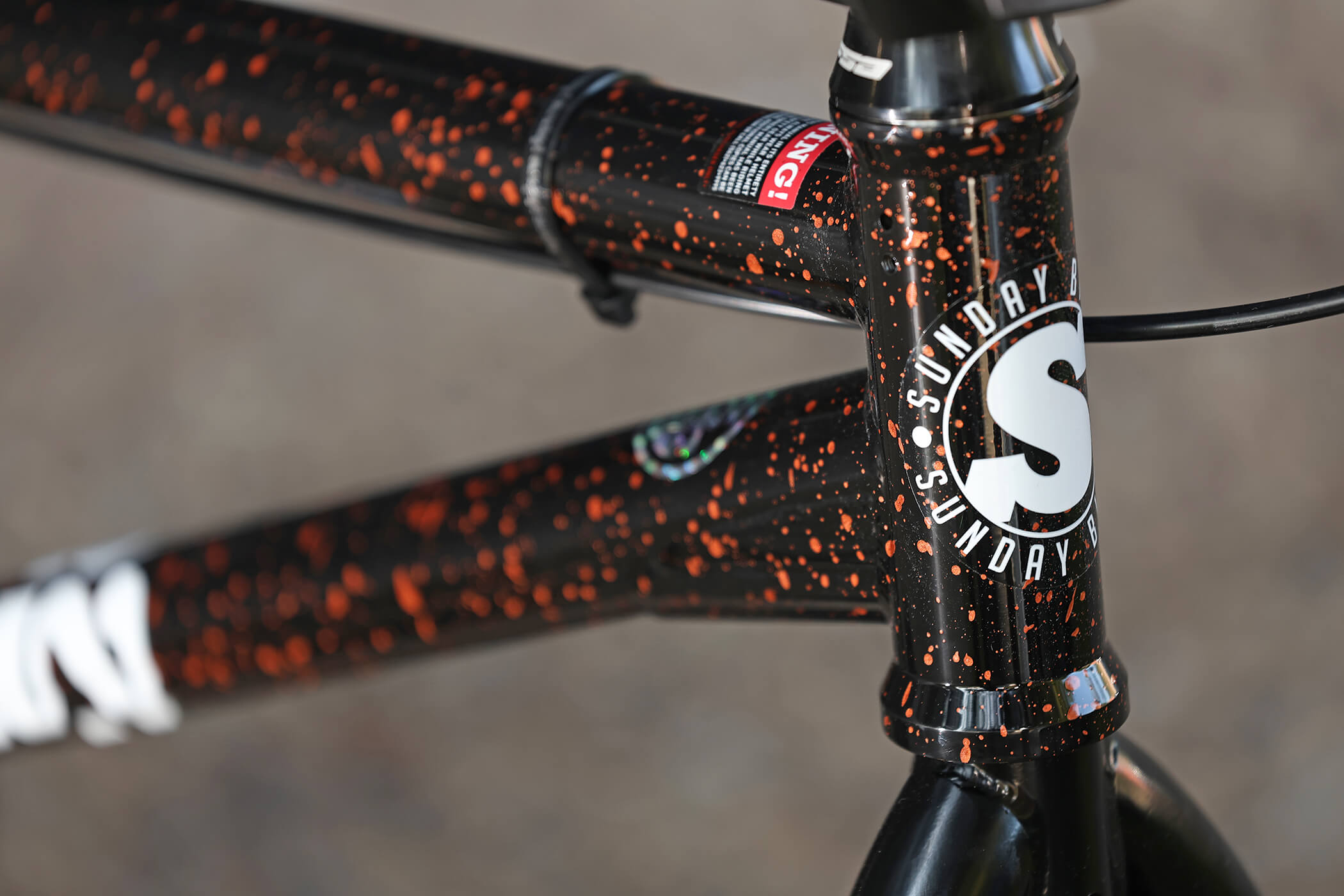

Frame: Sunday EX, 20.75″ TT, 100% chromoly frame with wave downtube, w/ removable brake hardware
Fork: Sunday EX, 20″, 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offset
Handlebar: Sunday, 100% chromoly, 4-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated conical, 1-1/8″
Alloy Cap:  Sunday M16, aluminum
Brake Lever:  Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable:  Odyssey Quik Slic
Grips: Sunday Jake Seeley
Seat: Sunday Badge, Pivotal
Seat post:  Sunday Pivotal
Seat Clamp: Sunday
Sprocket: Sunday Sabertooth v2, 25T, 6061 aluminum
Cranks: Sunday Saker, 165mm
BB Parts: Sealed, Mid, 19mm
Pedals: Odyssey Twisted PC Pro
Rims: Sunday Lightning, 20″, 36H
Front Hub: Sunday, 36H, low-flange, sealed , 3/8″ female axle
Rear Hub: Odyssey Clutch V2 FC, 36H, 14mm female axle w/ 9T driver, RHD, non-drive side plastic guard
Spokes: 14g steel, black
Tires: Odyssey Path Pro OEM, 20 x 2.4″ (F & R)
Chain: KMC Z1 wide
Approx. Weight: 25.75lbs (with brakes)



Frame Geometry

Top Tube Length: 20.75″
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5″
Standover: 9″

Handlebar Geometry

Rise: 9″
Width: 29″
Backsweep: 12°
Upsweep: 3°
