The SCOTT Scale 940 features an ultralight Carbon Frame. RockShox suspension, a SRAM Eagle drivetrain and Syncros components create a durable and affordable hardtail designed for world-class speed. This rocket is ready for your weekend adventures or racing the local Louisville Short Track Series.

SIZE AVAILABLE: MD, LG

  • Frame

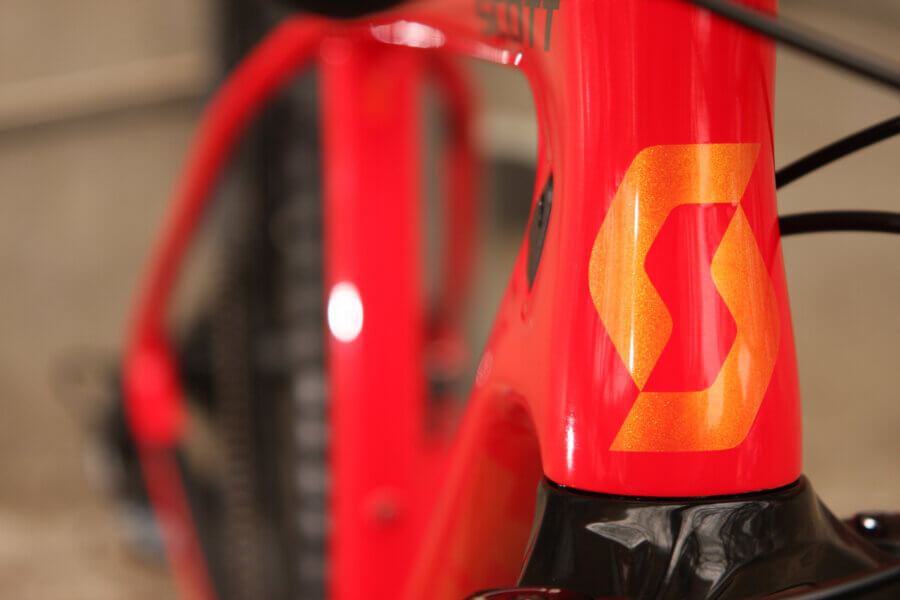

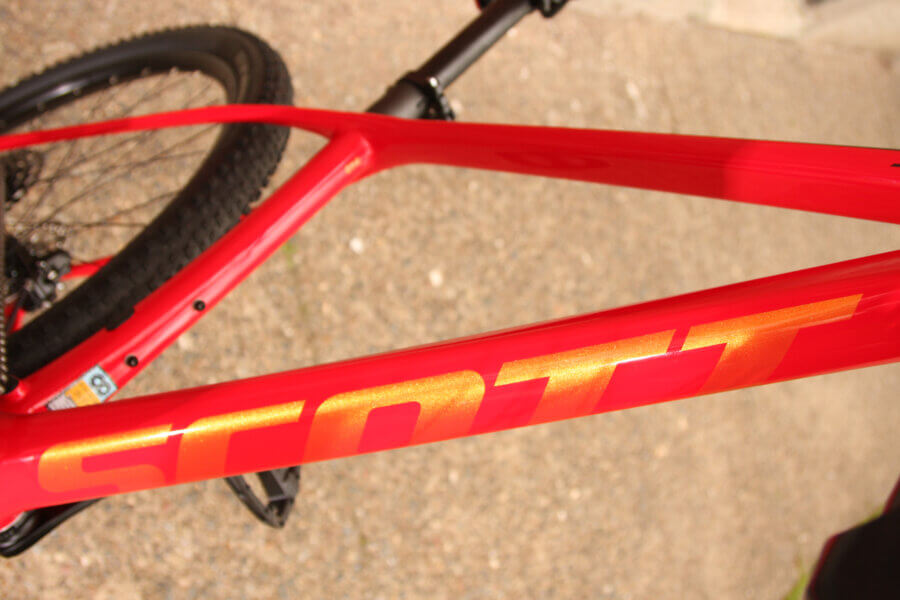

    Scale Carbon HMF
    Adjustable head angle / Syncros Cable Integration System
    Advanced Shock & Standing Damping System
    BB92 / UDH Interface / 12x148mm with 55mm Chainline

  • Fork

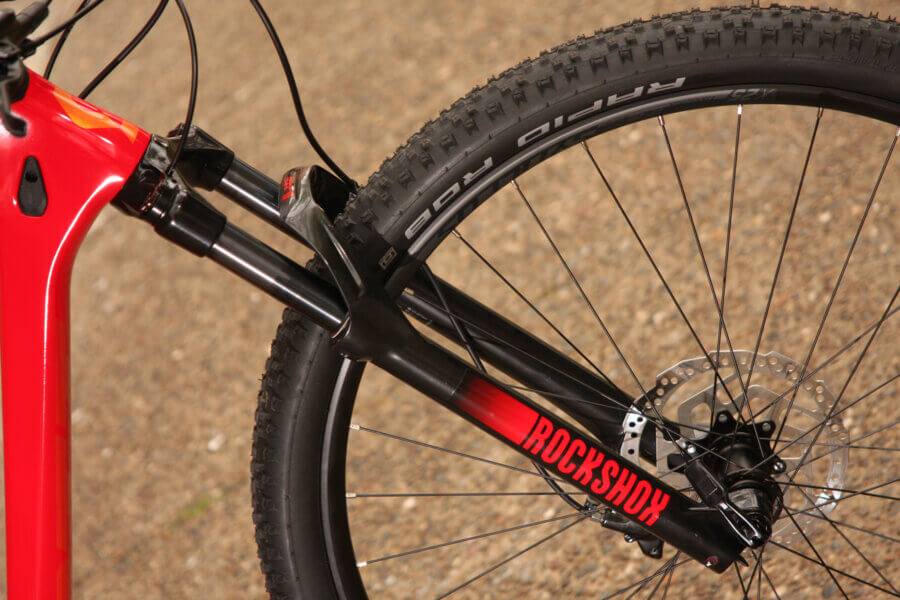

    RockShox Judy Silver TK Solo Air
    15x110mm QR axle / 42mm offset / Tapered Steerer
    Reb. Adj. / Lockout / 100mm travel

  • Remote System

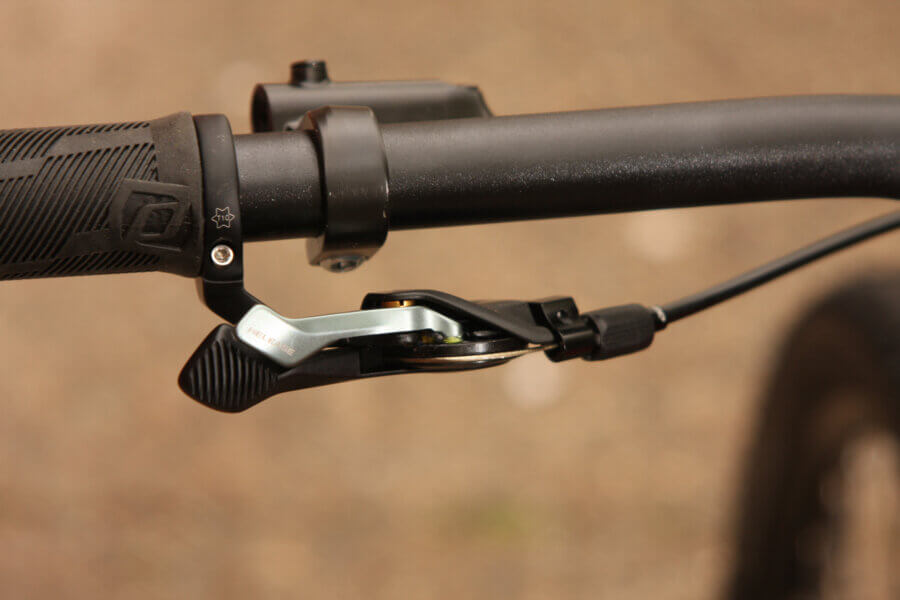

    SCOTT RideLoc 2 Remote

  • Rear Derailleur

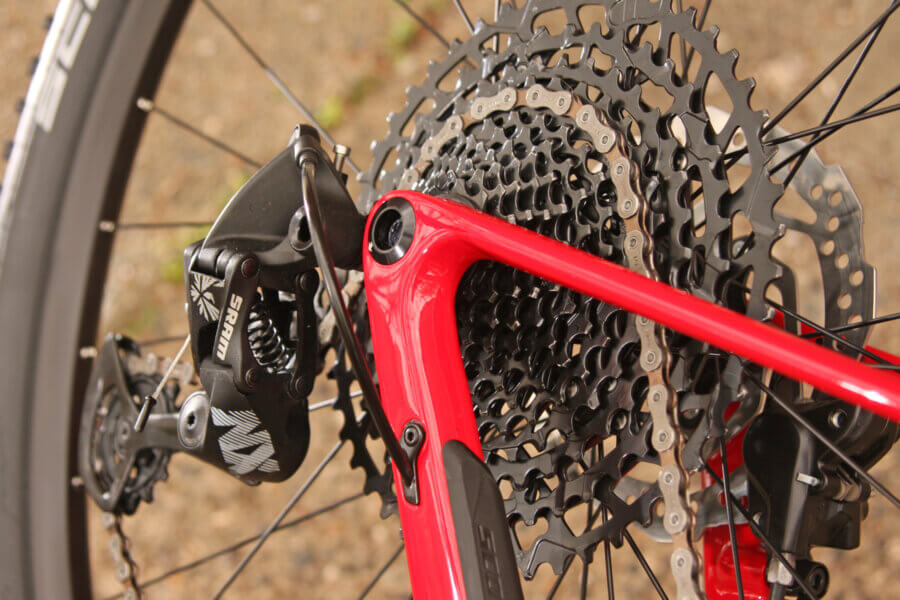

    SRAM NX Eagle 12 Speed

  • Shifters

    SRAM SX Eagle Trigger

  • Crankset

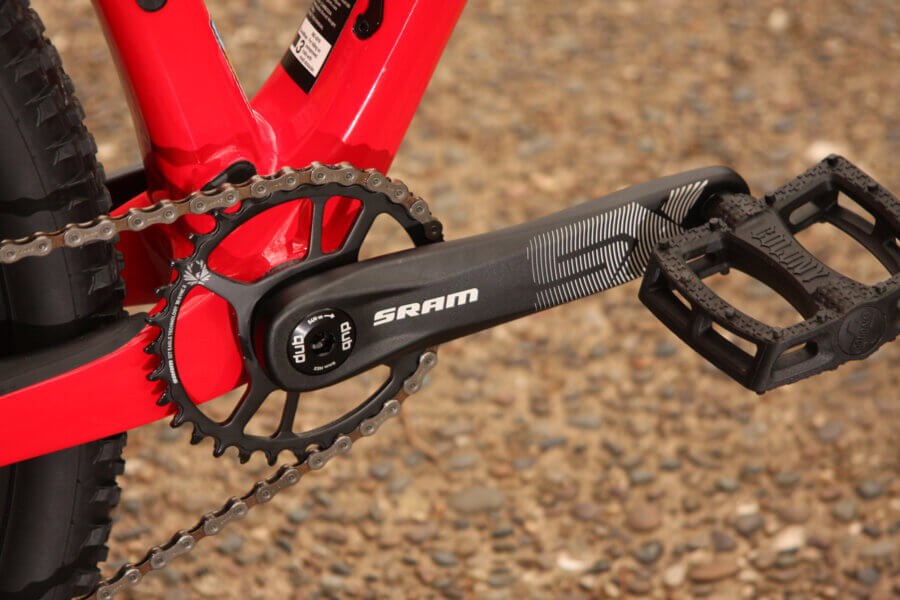

    SRAM SX Eagle DUB
    55mm CL / 32T

  • BB-Set

    SRAM DUB PF 92 MTB Wide / shell 41x92mm

  • Chain

    SRAM CN SX Eagle

  • Cassette

    SRAM SX-PG1210 / 11-50 T

  • Brakes

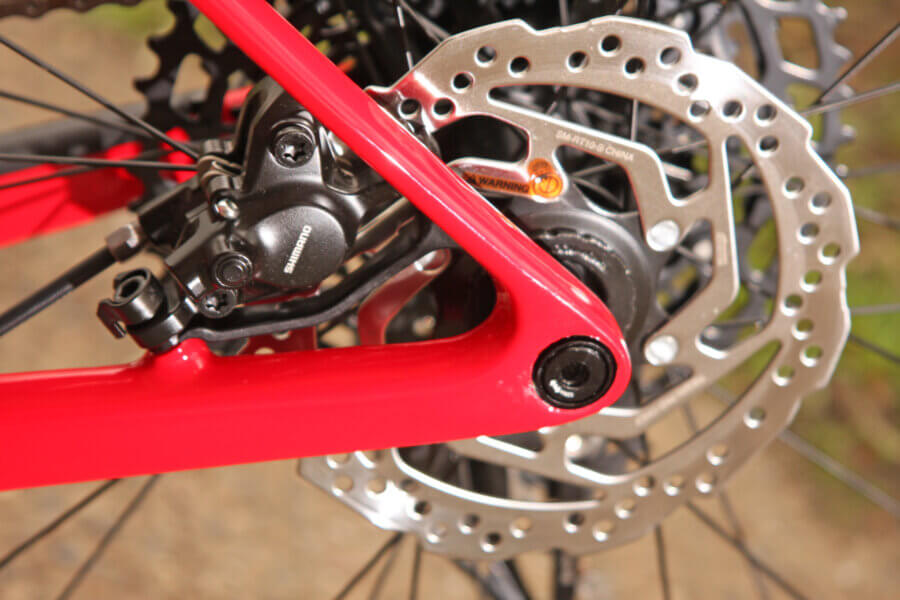

    Shimano MT200 Disc Brake

  • Rotor

    Shimano SM-RT10 CL / 180/F and 160/R

  • Handlebar

    Syncros Alloy 6061
    T shape Flat / 9° / 740mm
    Syncros Performance XC lock-on grips

  • H’stem

    Syncros Alloy 6061
    oversized 31.8mm / 1 1/8″ / 6° angle

  • Seatpost

    Syncros / 31.6x400mm

  • Seat

    Syncros Belcarra Regular 2.5

  • Headset

    Syncros – Acros Angle adjust & Cable Routing HS System
    +-0.6° head angle adjustment
    ZS56/28.6 – ZS56/40 MTB

  • Hub (Front)

    Formula CL-811 / 15x110mm

  • Hub (Rear)

    Formula CL-3248 / 12x148mm

  • Spokes

    Stainless Black 15G / 1.8mm

  • Rims

    Syncros X-30SE / 32H / 30mm
    Tubeless ready

  • Front Tire

    Schwalbe Smart Sam 29×2.35″ / Active line

  • Rear Tire

    Schwalbe Smart Sam 29×2.35″ / Active line

  • Approx weight in LBS

    28 (with tubes)
