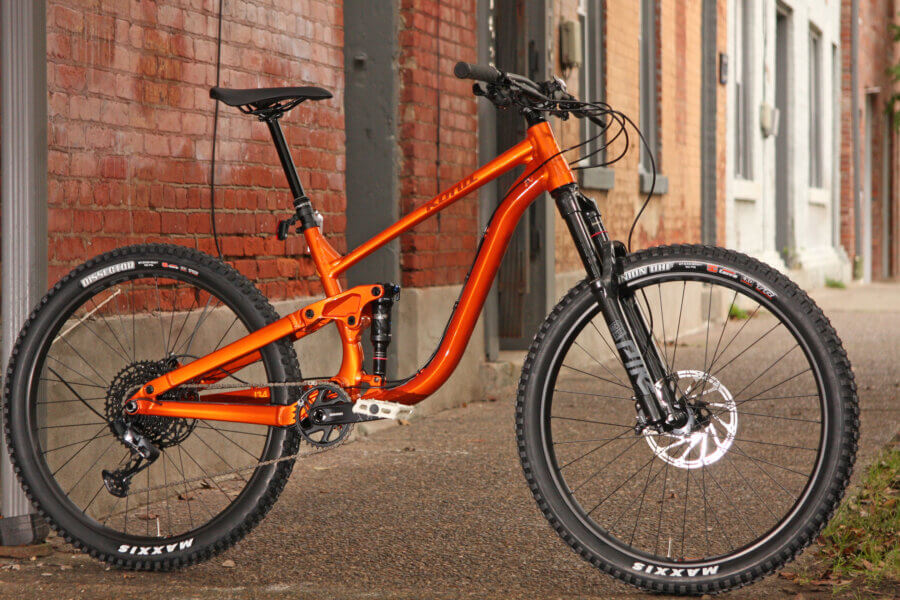

You want a nice bike, but you’ve been hesitating to pull the trigger. What’s the right amount of travel? How can you be sure you’re getting great value? How do you know this bike is the only bike you’ll need? Because you gotta trust the Process, that’s why. The Process 134 DL 27.5 is thoughtfully put together to ensure every box is checked. It features a spec that puts the money where it matters: suspension, brakes, and drivetrain. It also comes in sizes XS-XL ensuring that no matter how tall or short you stand you’ll find a perfect fitting ride. It’s perfection in a bike.
Current available sizes: medium – 10/28/21 (small arriving next week)

SPECIFICATIONS

Frame Material Kona 6061 Aluminum Butted 134mm Travel
Sizes XS, S, M, L, XL

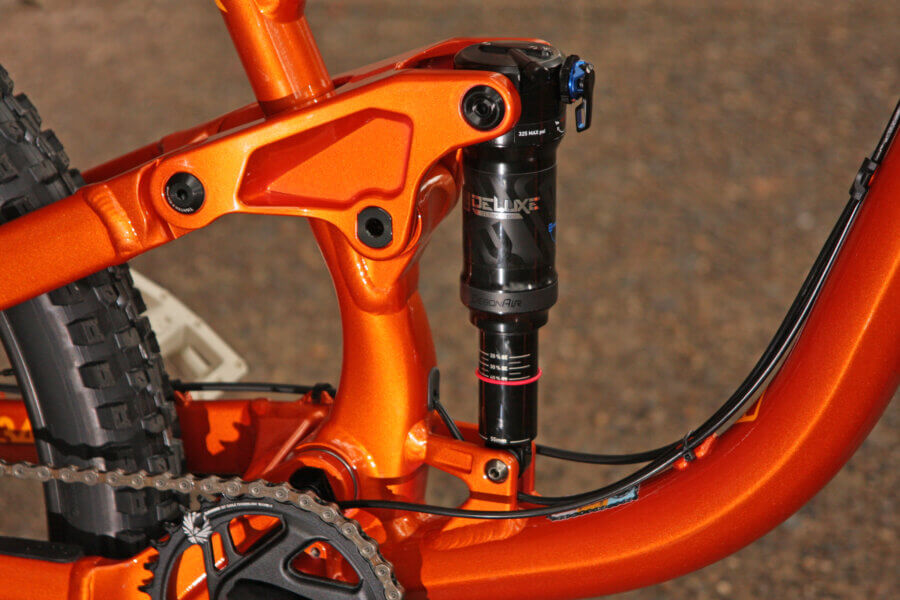

Rear Shock RockShox Deluxe Ultimate Trunnion

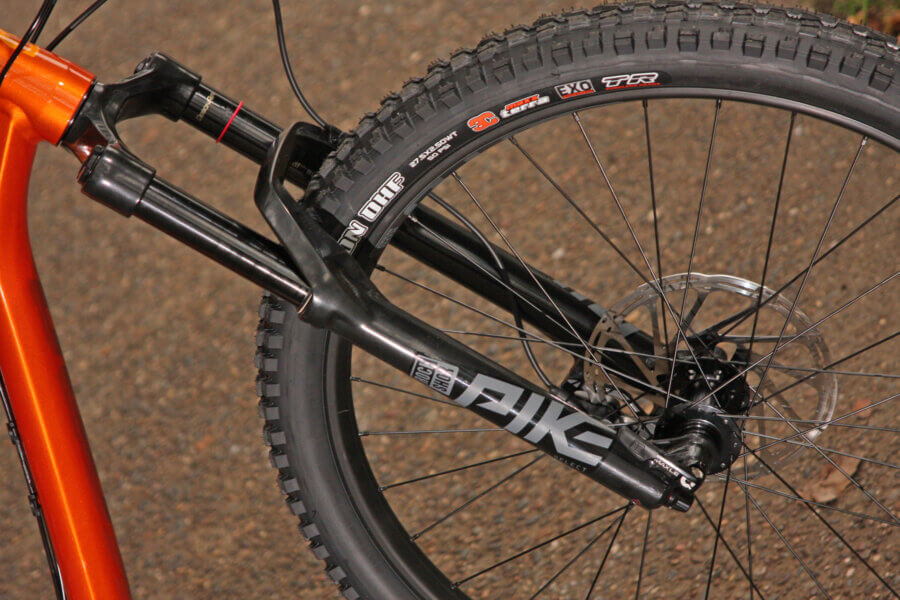

Fork RockShox Pike Select RC Charger DebonAir 140mm Tapered 110mm Spacing

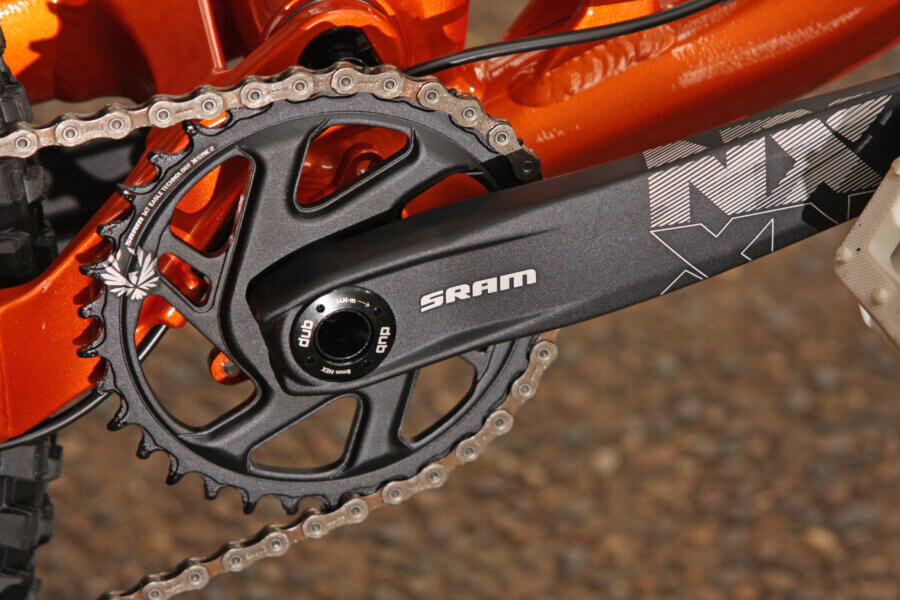

Crankarms SRAM NX Eagle DUB
Chainrings 34t X-Sync Eagle
B/B SRAM DUB PF92
Pedals n/a
Chain SRAM SX-Eagle
Freewheel SRAM NX-Eagle 11-50t 12spd
Chainguide n/a
F/D n/a

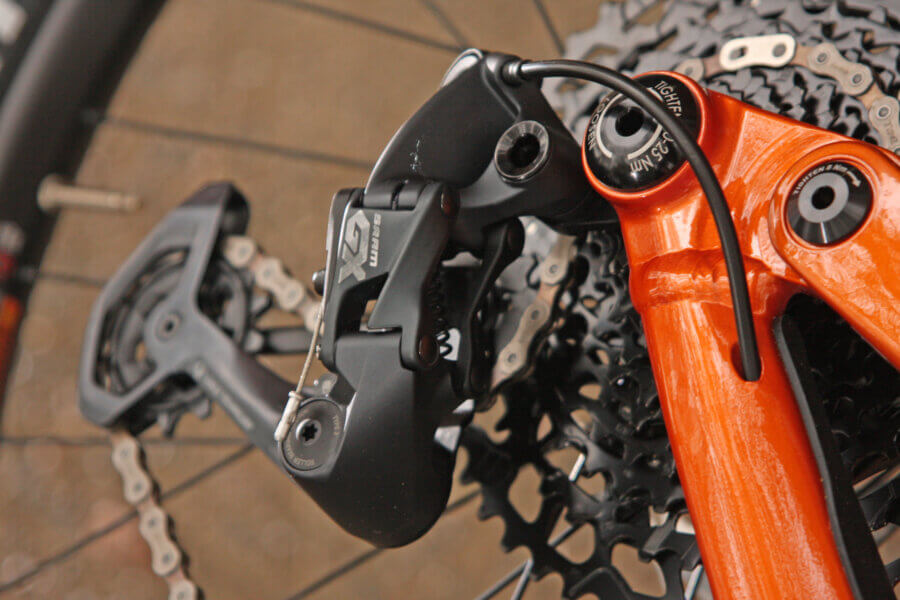

R/D SRAM GX-Eagle
Shifters SRAM NX-Eagle
Brake Calipers SRAM G2 RS
Front Brake Rotor SRAM Centerline 200mm
Rear Brake Rotor SRAM Centerline 180mm

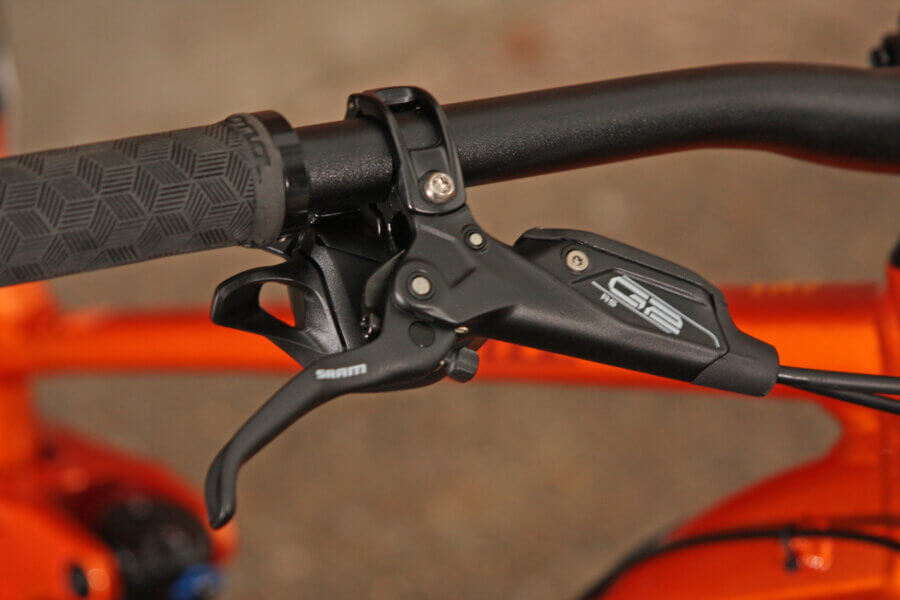

Brake Levers SRAM G2 RS
Headset FSA Orbit 1.5 EP ZS
Handlebar Kona XC/BC 35
Stem Kona XC/BC 35

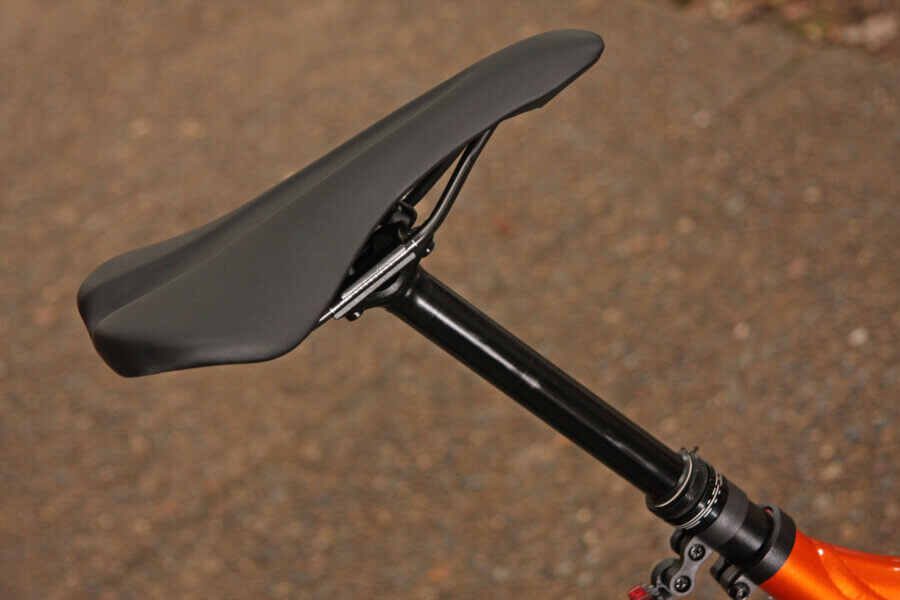

Seatpost TranzX Dropper +RAD Internal 31.6mm
Seat Clamp Kona Clamp
Grips Kona Key Grip
Saddle WTB Volt
Front Hub Formula 110x15mm
Rear Hub Formula 148x12mm
Spokes Stainless Black 14g

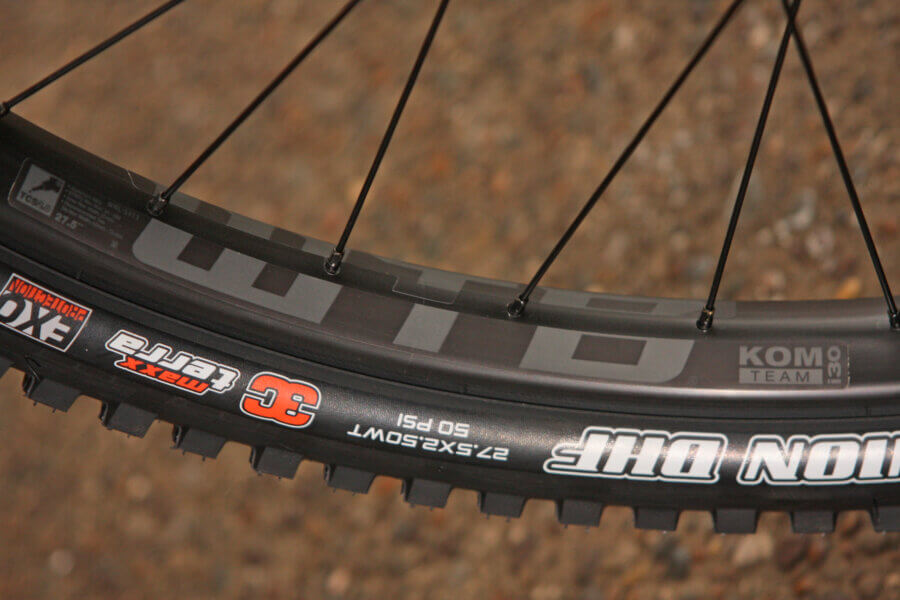

Rims WTB KOM Team i30 TCS
Front Tire Maxxis Minion DHF EXO TR 3C 27.5×2.5″ WT
Rear Tire Maxxis Dissector EXO TR 3C 27.5×2.4″ WT
Paint Color Gloss Oxy Fire w/ Orange Decals

GEOMETRY

Size XS S M L XL
1 ST Length 360 385 410 450 485
2 TT Length 537 567 596 625 664
3 Reach 400 425 450 475 510
4 Stack 585 595 605 615 626
5 Standover 674 687 712 712 711
6 HT Angle 66 66 66 66 66
7 HT Length 116 127 138 149 160
8 ST Angle 76.8 76.6 76.5 76.3 76.2
9 CS Length 425 425 425 425 425
10 BB Drop 12 12 12 12 12
11 BB Height 343 343 343 343 343
12 Wheelbase 1131 1160 1190 1219 1259
13 Front Center 706 735 765 794 834
14 Fork Length 532 532 532 532 532
15 Fork Offset 46 46 46 46 46
